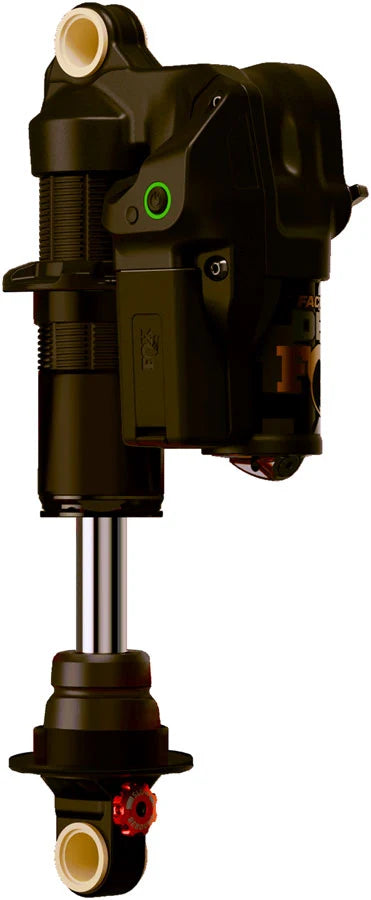

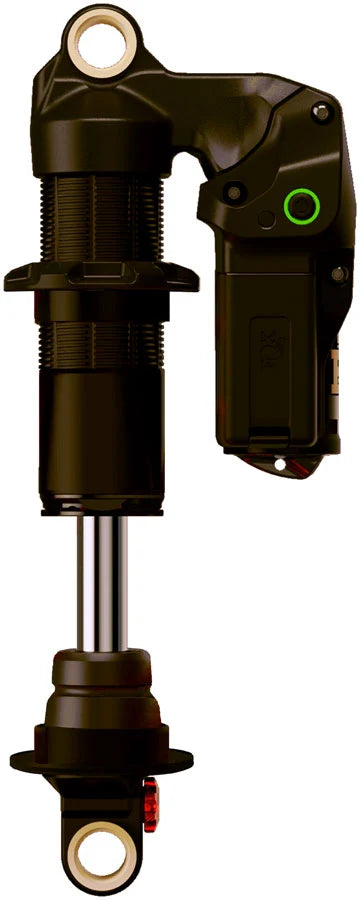

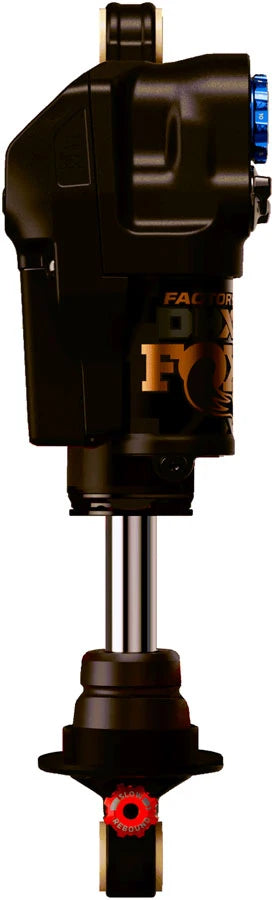

FOX DHX Live Valve Neo Factory Rear Shock - Metric, 230 x 65 mm, Hard Chromoly Stanchion, Black

SKU: RS1158
(0)
$1,039.00
Out of stock
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

Need help choosing the right size?

Read our guide or get in touch

The coil-sprung, ground-hugging, trail-smoothing performance of DHX powers up with Live Valve Neo for the ultimate in wireless suspension control. By opening or firming the compression circuit based on trail data in 1/70th of a second, DHX Live Valve Neo lets you realize your fastest. Live Valve Neo reads terrain inputs 400 times per second and will instantly respond by giving you plushness or support. NOTE: The Live Valve Neo Kit (which includes sensors, Controller battery and mounting hardware) is sold separately and is required for the DHX Live Valve Neo shock to function as intended.
  • IMPORTANT: The Live Valve Neo Kit (which includes sensors, Controller battery and mounting hardware) is sold separately and is required for the DHX Live Valve Neo shock to function
  • 2-Position magnetic latching solenoid for quick and quiet transitions between open and firm shock positions
  • Tool-free firm mode adjuster controls the firmness of the shock's platform when the 2-position solenoid is closed
  • Numbered, tool-free 10-Click low-speed compression, 12-Click low-speed rebound, and 6-Click firm mode adjusters that can easily be adjusted trailside
  • Shake to Wake function - When activated, Live Valve Neo turns on automatically when the bike moves and wheels are bumped
  • A size-specific piggyback reservoir increases oil volume for enhanced bump sensitivity, greater tire grip and fade-free performance over long descents
  • FOX bike app provides easy setup guides, monitors battery levels, downloads and engages Live Valve Neo tunes, tracks service intervals, and more
  • Coil Spring Sold Separately
Item Specifications
External Adjustments Coil Preload
External Adjustments Low Speed Compression Damping
External Adjustments Rebound Damping
Eye to eye length (mm) 230
Eyelet Diameter (mm) 12.7
keyword search FOX Model Year 27
keyword search FOX MY27
Lockout Switch Shock Mounted Switch
Metric Yes
Positive Spring Coil
Stroke (mm) 65

FOX DHX Live Valve Neo Factory Rear Shock Rear Shock UPC: 821973525877
