Home » FOX DHX Factory Rear Shock - Metric, 230 x 60 mm, 2-Position Lever, Hard Chromoly Stanchion, Black
fox

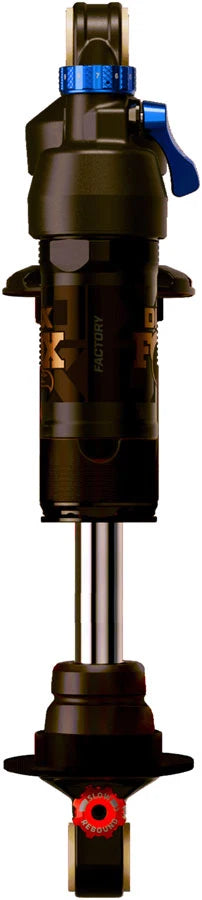

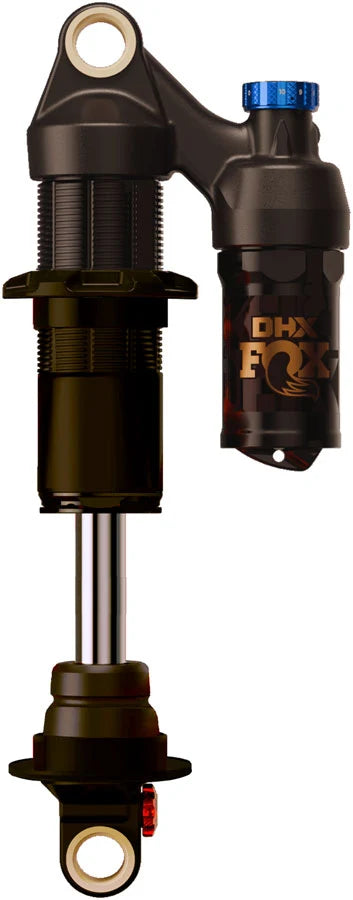

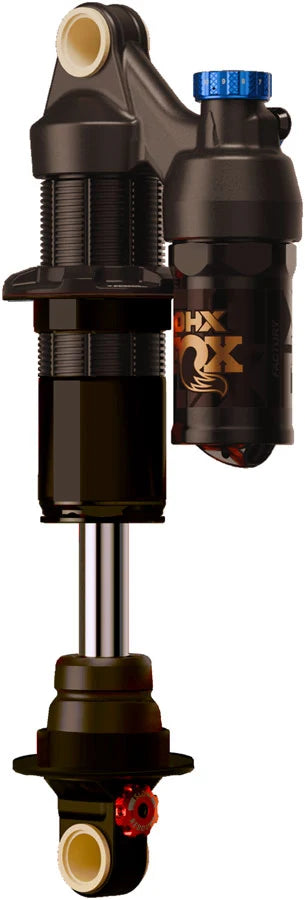

FOX DHX Factory Rear Shock - Metric, 230 x 60 mm, 2-Position Lever, Hard Chromoly Stanchion, Black

SKU: RS0798
(0)
$659.00
Out of stock
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

Need help choosing the right size?

Read our guide or get in touch

The answer for riders seeking the ultimate in plush suspension, DHX brings coil-sprung, ground-hugging, trail-smoothing performance in a wide range of configurations to All-Mountain riding. The high-flow main piston assembly provides increased sensitivity, support, and rear tire grip.
  • Monotube architecture with a new high-flow main piston increases sensitivity, support, and rear tire grip
  • Updated, more durable MCU bottom out bumper assembly for improved performance
  • Numbered tool-free 11-Click LSC (Low Speed Compression) and 16-Click LSR (Low Speed rebound adjusters
  • Clickable 2-position firm mode for efficient power
  • Piggyback reservoir tailored specifically for each shock size allows maximum performance-to-weight ratio and consistent ride feel over long descents
  • Improved top-out bumper for quieter suspension action
  • Bearing hardware compatible both sides
  • Spring preload collar with detents and max / min number of clicks and direction arrow
  • Coil spring sold separately
  • Bearing mount compatible both sides.
Item Specifications
External Adjustments Coil Preload
External Adjustments Low Speed Compression Damping
External Adjustments Rebound Damping
Eye to eye length (mm) 230
Eyelet Diameter (mm) 12.7
keyword search FOX Model Year 27
keyword search FOX MY27
Lockout Switch Shock Mounted Switch
Metric Yes
Positive Spring Coil
Stroke (mm) 60

FOX DHX Factory Rear Shock Rear Shock UPC: 821973525945
