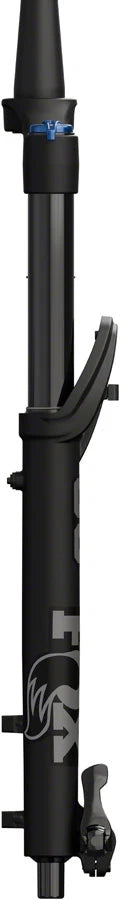

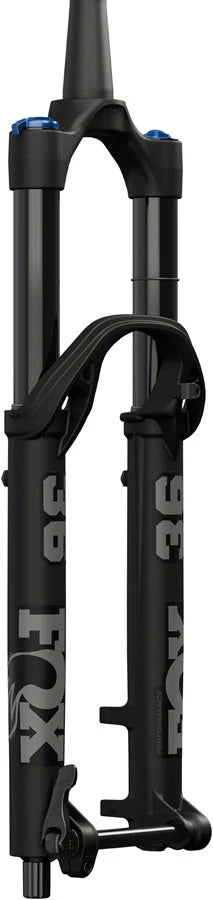

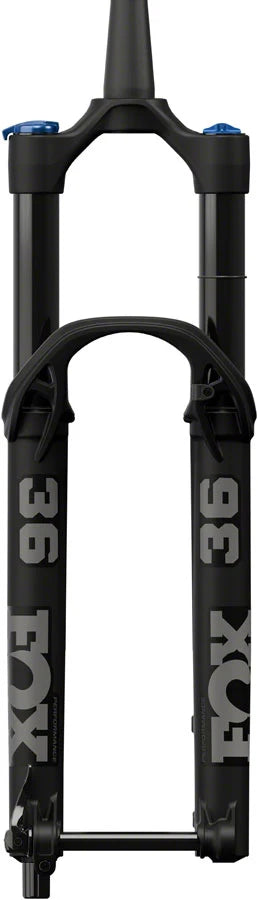

FOX 36 Performance Suspension Fork - 29", 160 mm, 15QR x 110 mm, 44mm Offset, GRIP Damper, 3-Position, 58HT, Matte Black
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!
Need help choosing the right size?

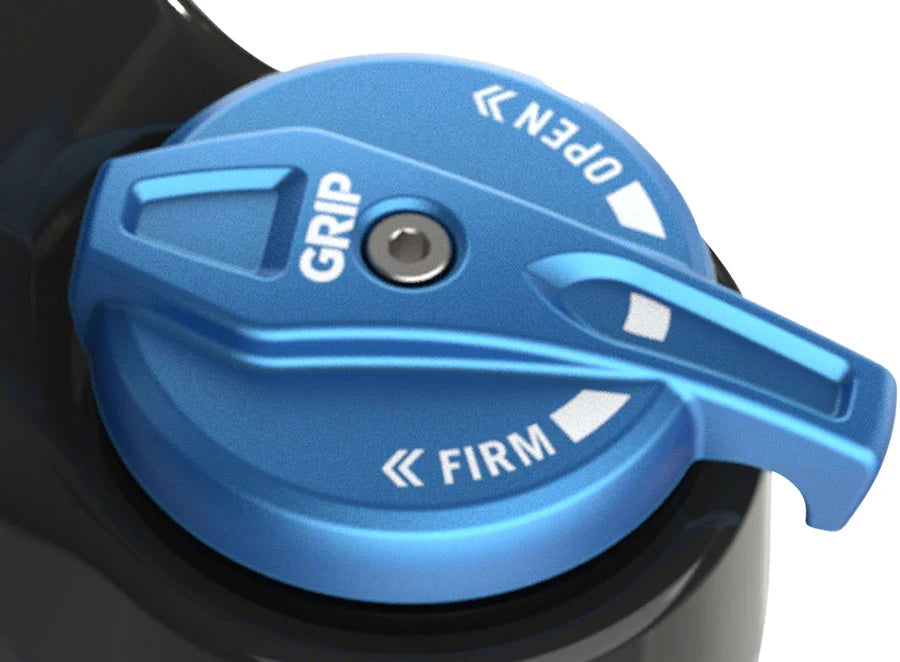

- GRIP damper features a 3-position lever for easy set up and firm mode for pedaling efficiency
- Generative design-assisted lower leg arch shape increases torsional stiffness by 20%, while reducing overall material
- Additional 30mm bushing overlap than the prior model 36, reduces chassis friction, increasing stiffness and boosting performance
- New compliant FLOAT EVOL air spring design allows for a slight misalignment under load, reducing chassis friction noticeably
- Lower leg bypass channels were relocated 90 inboard to a lower stress area, reducing dynamic friction under bending forces
- Double-butted stanchion (on damper side) shaves weight, helping us achieve goal of zero weight increase

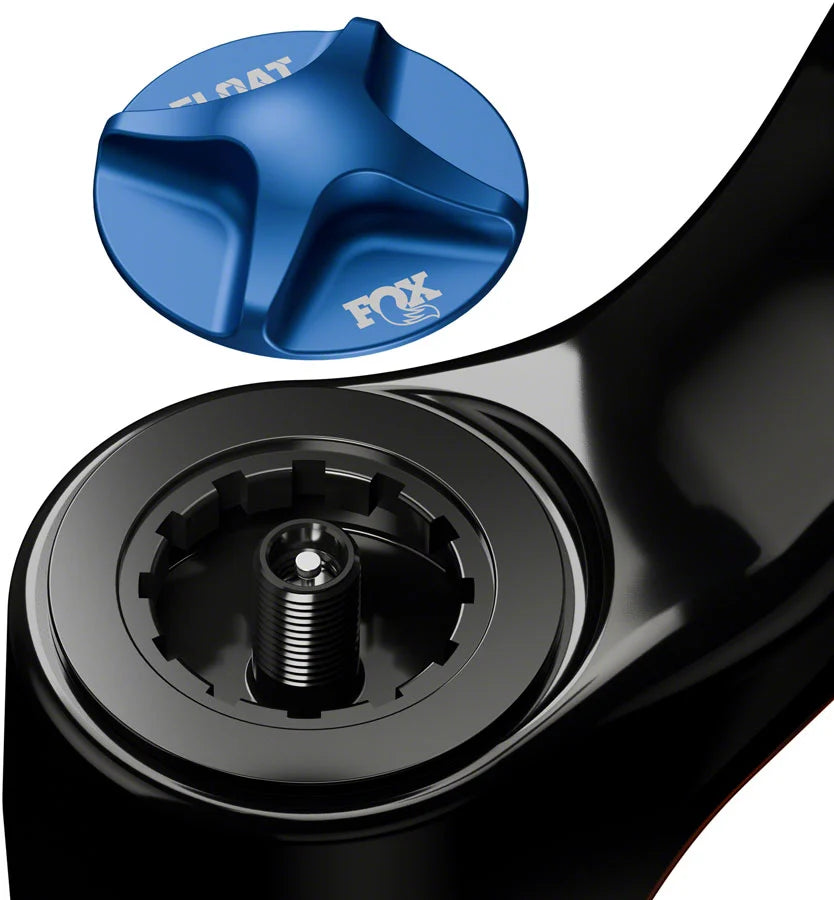

- New air spring top cap for easier air volume adjustments, removable with cassette tool (Sold separately)
- Redesigned bleeders are sleeker and easier to operate
- Kabolt X axle shaves grams while increasing torsional stiffness via a sleeveless, single-sided pinch bolt design
- Black anodized upper tubes for added durability
| Item Specifications | |
|---|---|
| Axle to Crown Length | 576 |
| Brake Type | Post Mount 200 |
| Color | Matte Black |
| Crown Race | 40 |
| Defined Color | Black |
| External Adjustments | High Speed Compression Damping |
| External Adjustments | Low Speed Compression Damping |
| External Adjustments | Rebound Damping |
| Front Axle | 15mm Thru x 110mm |
| keyword search | FOX Model Year 26 , FOX MY26 |
| Lockout Switch | Crown |
| Maximum Tire Width | 66 |
| Negative Spring | Air |
| Offset | 44 |
| Positive Spring | Air |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Stanchion Diameter | 36 |
| Steerer Tube Length (mm) | 264 |
| Steerer Type | Tapered |
| Travel (mm) | 160 |
| Wheel Size | 29" |
FOX 36 Performance GRIP Suspension Fork Suspension Fork UPC: 821973504209
