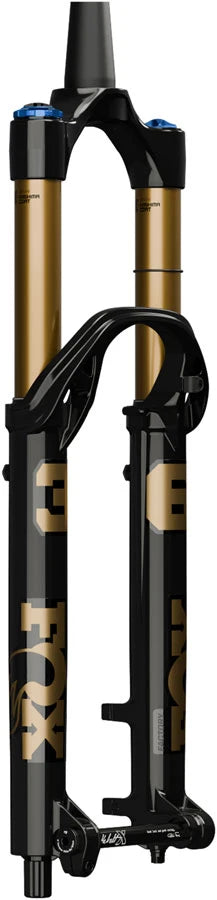

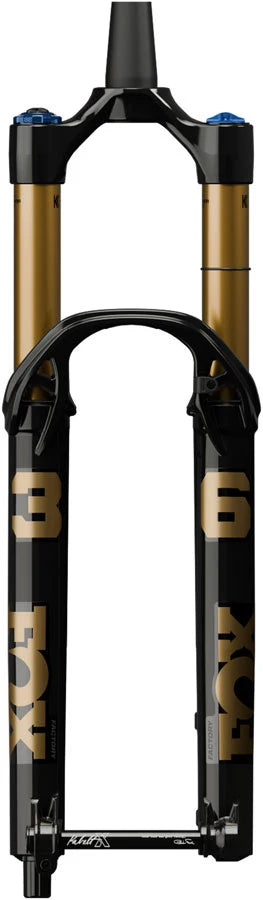

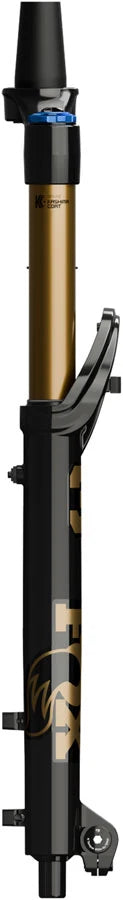

FOX 36 Factory Suspension Fork - 29", 160 mm, 15 x 110 mm, Kabolt-X, 44mm Offset, GRIP X2 MY27, Float Glidecore, 58HT,
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!
Need help choosing the right size?

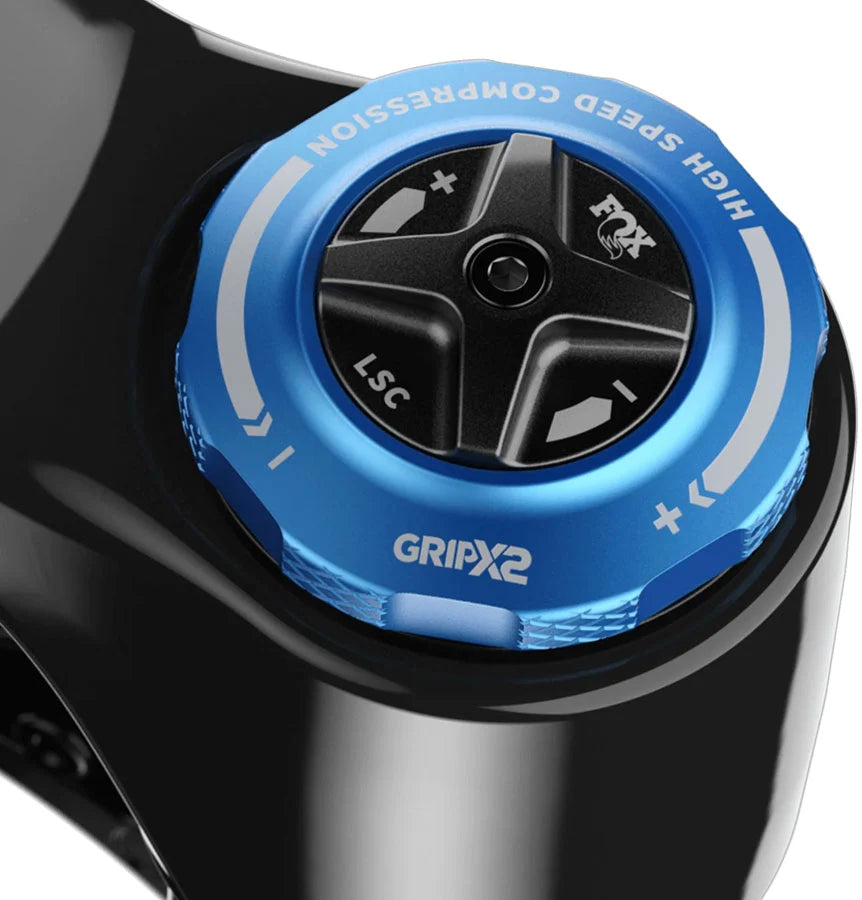

- 4-way adjustable GRIP X2, with all new piston and tune, is the most tunable, supportive and smoothest descent-focused damper ever created by FOX
- Generative design-assisted lower leg arch shape increases torsional stiffness by 20%, while reducing overall material
- Additional 30mm bushing overlap than the prior model 36, reduces chassis friction, increasing stiffness and boosting performance
- The seamlessly compliant FLOAT Glidecore air spring reduces friction and bind by moving with the fork under dynamic load for a smoother suspension action
- Lower leg bypass channels were relocated 90 inboard to a lower stress area, reducing dynamic friction under bending forces
- Double-butted stanchion (on damper side) shaves weight, helping us achieve goal of zero weight increase
- Redesigned bleeders are sleeker and easier to operate
- Kabolt-X axle shaves grams while increasing torsional stiffness via a sleeveless, single-sided pinch bolt design
- Kashima Coating on upper tubes for added smoothness and durability
| Item Specifications | |
|---|---|
| Axle to Crown Length | 576 |
| Brake Type | Post Mount 200 |
| Color | Shiny Black |
| Crown Race | 40 |
| Defined Color | Black |
| External Adjustments | High Speed Compression Damping |
| External Adjustments | Low Speed Compression Damping |
| External Adjustments | Rebound Damping |
| Front Axle | 15mm Thru x 110mm |
| keyword search | FOX Model Year 27 , FOX MY27 |
| Lockout Switch | Crown |
| Maximum Tire Width | 66 |
| Negative Spring | Air |
| Offset | 44 |
| Positive Spring | Air |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Stanchion Diameter | 36 |
| Steerer Type | Tapered |
| Travel (mm) | 160 |
| Wheel Size | 29" |
FOX 36 Factory GRIP X/X2 Suspension Fork Suspension Fork UPC: 821973525266
