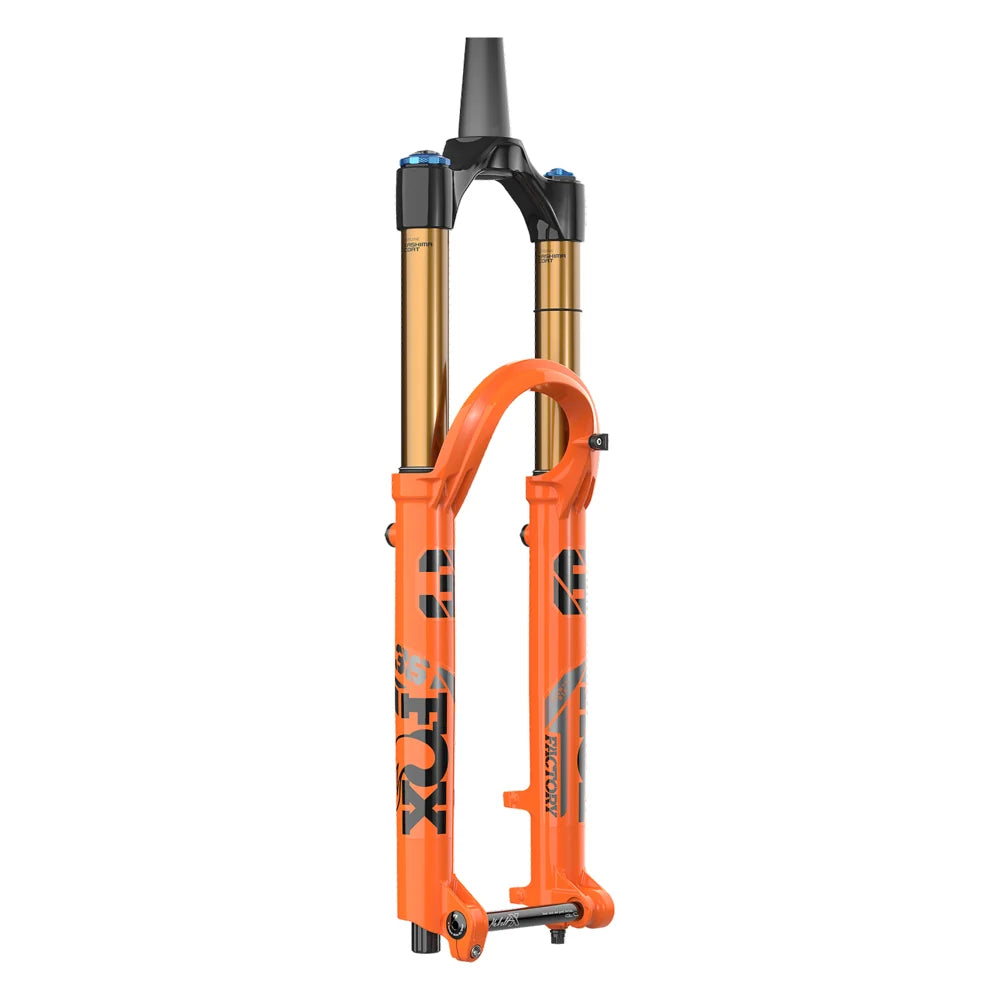

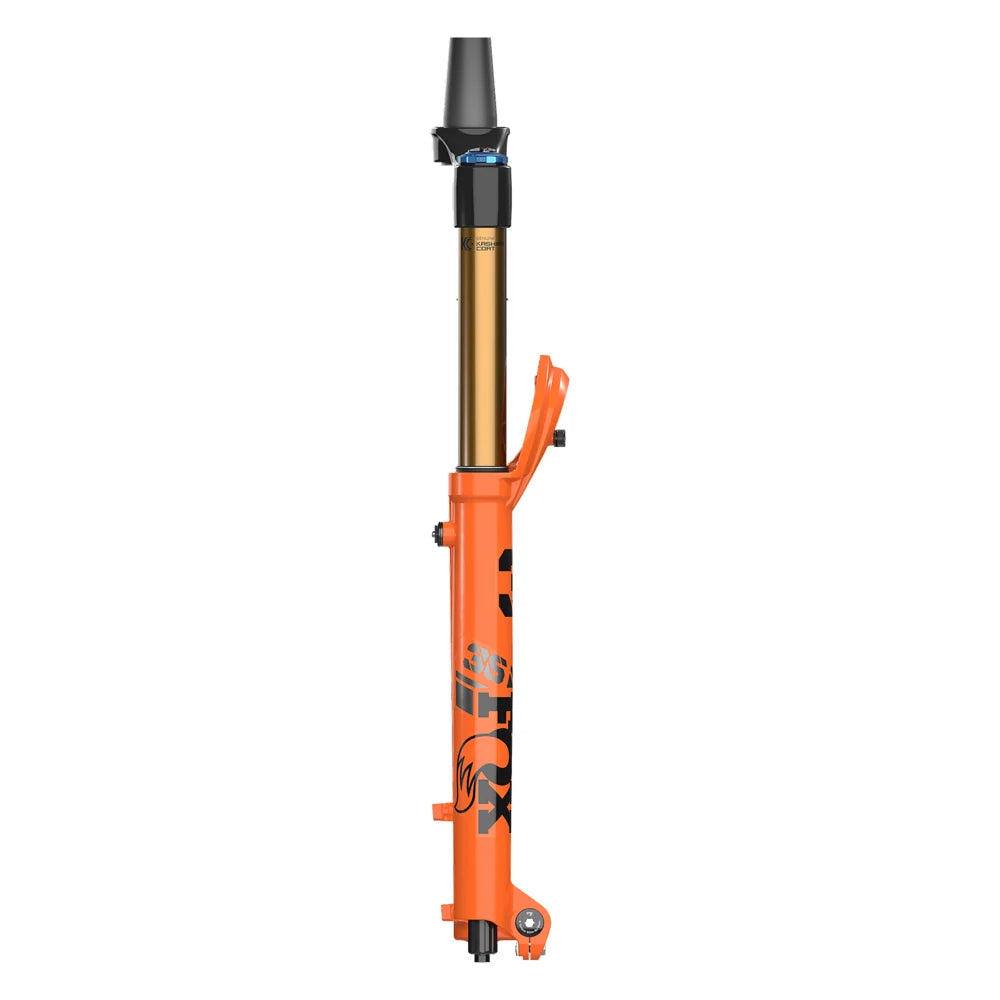

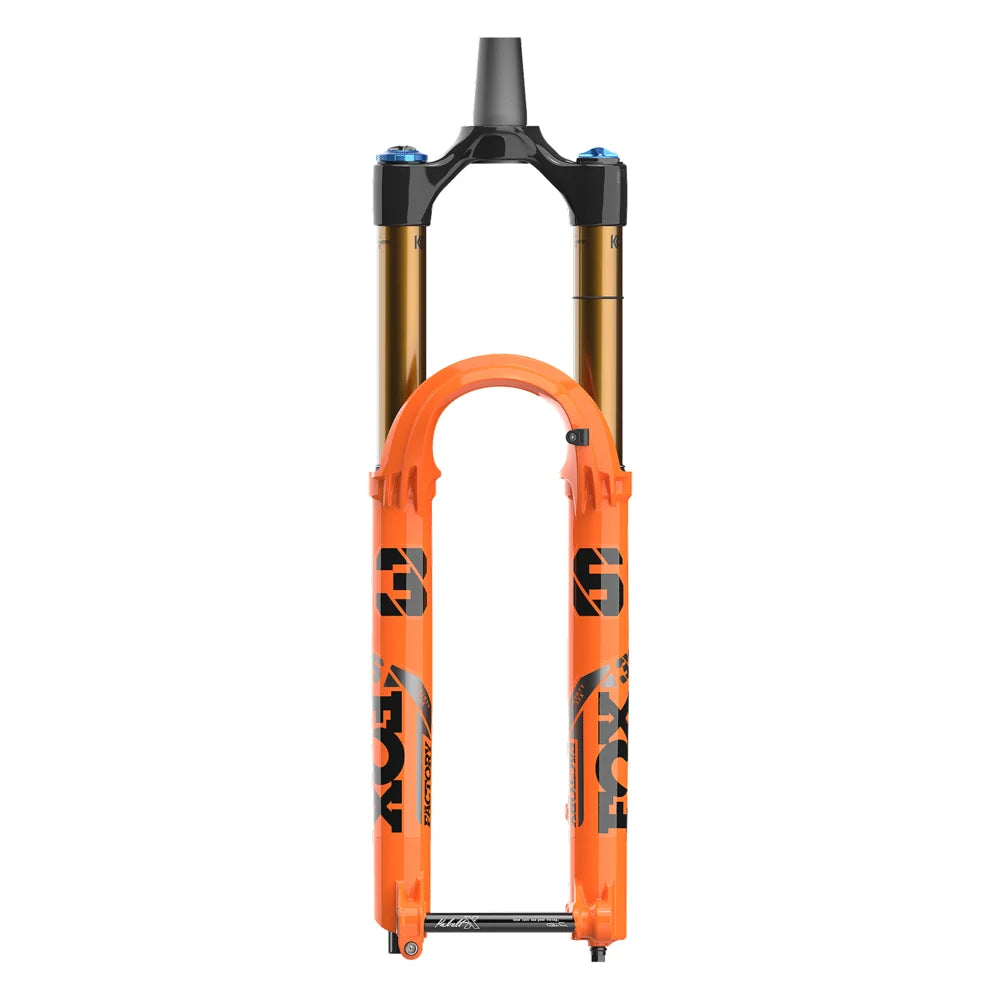

FOX 36 Factory Suspension Fork - 29", 160 mm, 15 x 110 mm, Kabolt-X, 44mm Offset, GRIP X2 Damper, Shiny Orange
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!
Need help choosing the right size?

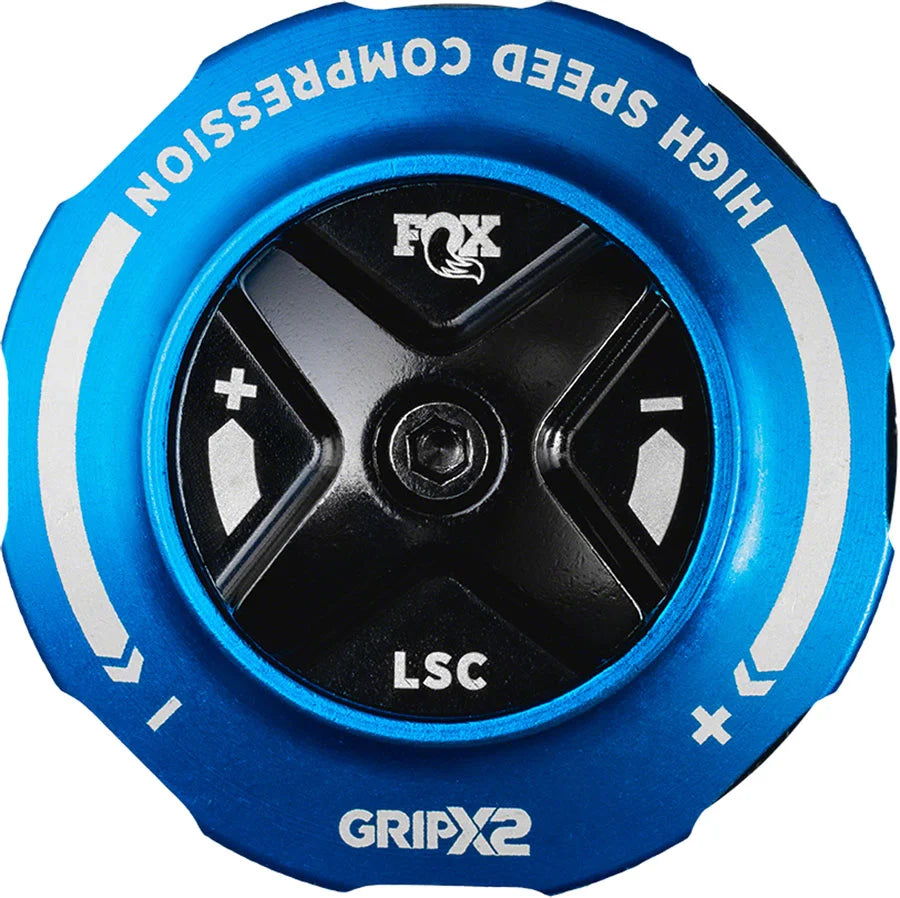

- GRIP X2 is the most tunable, supportive and smoothest descent-focused damper FOX has created
- Riders reap the benefits of sitting higher in the travel while tires stay glued to the ground, cornering with increased traction and experience reduced fatigue
- The lower leg arch design of the 36 shaves every possible gram while maximizing stiffness and strength requirements of enduro and aggressive all-mountain riding
- Lower leg bleeders allow atmospheric pressure equalization at the push of a button and the bypass channels increase volume to alleviate pressure ramping as the fork moves through its travel for better fork performance by increasing small bump sensitivity and responsiveness
- Fitted with the proven and reliable FLOAT EVOL air spring
- Kabolt X axle shaves grams while increasing torsional stiffness via a sleeveless, single-sided pinch bolt design
- Kashima Coating on upper tubes for added durability
| Item Specifications | |
|---|---|
| Axle to Crown Length | 575 |
| Brake Type | Post Mount 180 |
| Color | Shiny Black |
| Crown Race | 40 |
| Defined Color | Black |
| External Adjustments | High Speed Compression Damping |
| External Adjustments | Low Speed Compression Damping |
| External Adjustments | Rebound Damping |
| Front Axle | 15mm Thru x 110mm |
| keyword search | FOX Model Year 25 |
| keyword search | FOX MY25 |
| Lockout Switch | Crown |
| Maximum Tire Width | 72 |
| Negative Spring | Air |
| Offset | 44 |
| Positive Spring | Air |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Stanchion Diameter | 36 |
| Steerer Tube Length (mm) | 264 |
| Steerer Type | Tapered |
| Travel (mm) | 160 |
| Wheel Size | 29" |
FOX 36 Factory GRIP X/X2 Suspension Fork Suspension Fork
