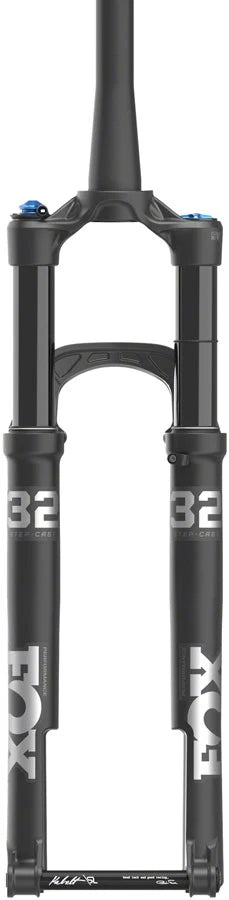

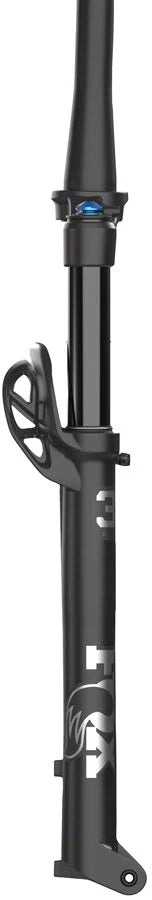

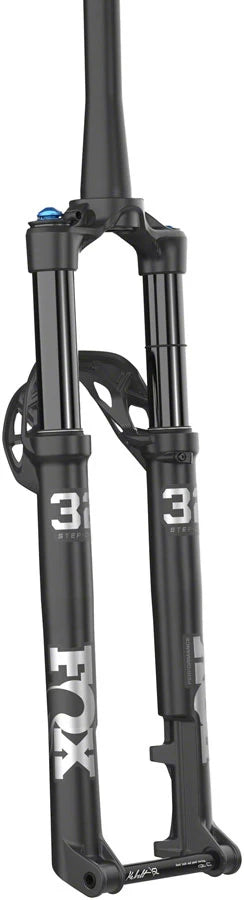

FOX 32 Step-Cast Performance Suspension Fork - 29", 100mm, 15x110mm, Kabolt SL, 44mm Offset, GRIP Damper, Push-Lk., Ano

SKU: FK2789
(0)
$649.00
Out of stock
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

Need help choosing the right size?

Read our guide or get in touch

Competition drives innovation, and as cross-country athletes and course designers push the boundaries of lightweight components, 32 Step-Cast Performance rises to meet the demand. The crown is designed to increase stiffness to the same level as the trail-proven 34. The distinct shape of the Step-Cast chassis uses a narrow stance to save weight and the step design makes room for the spokes and brake rotor.
  • GRIP Push-Lock damper features 3-position settings for easy set up and firm mode for pedaling efficiency (Remote sold separately)
  • The rear arch matrix was generatively designed to increase stiffness by 40% while minimizing weight
  • Premium 7000 series aluminum crown supports angled upper tubes, rathan than relying on extra material to achieve overall rake and steering stiffness
  • Kabolt SL thru-axle drops an additional 12g over the standard Kabolt axle by eliminating the weight of an axle nut and decreasing the flange diameter

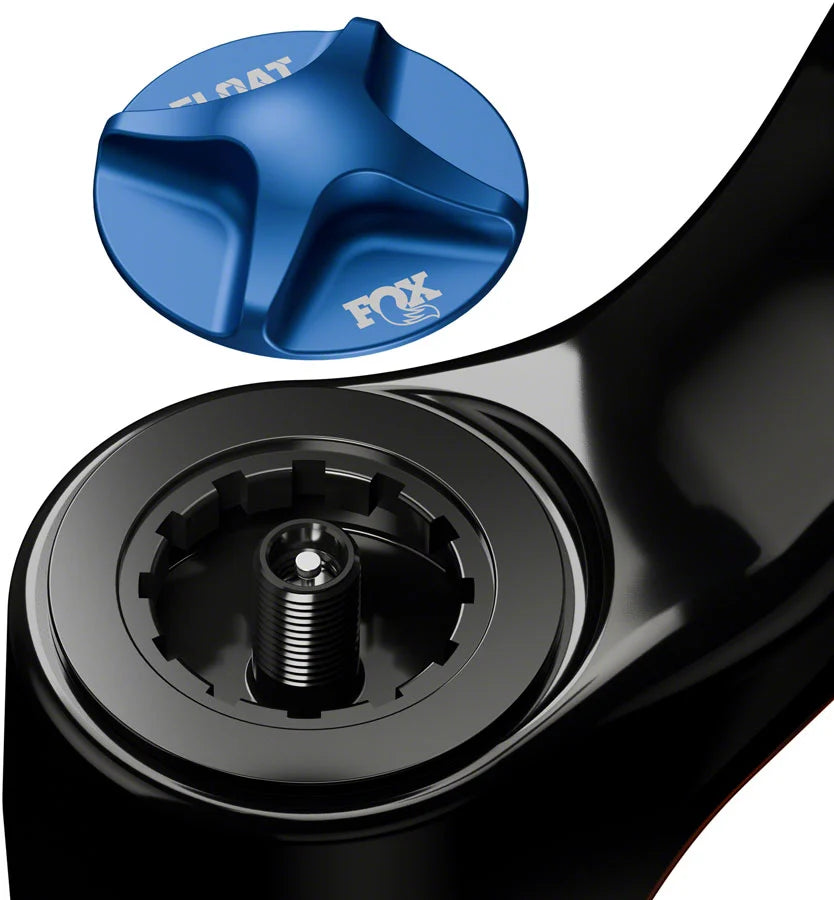

  • Fitted with the proven and reliable FLOAT EVOL air spring
  • Black anodized upper tubes for added durability
Item Specifications
Axle to Crown Length 503.7
Brake Type Post Mount 160
Color Matte Black
Crown Race 40
Defined Color Black
External Adjustments High Speed Compression Damping
External Adjustments Low Speed Compression Damping
External Adjustments Rebound Damping
Front Axle 15mm Thru x 110mm
keyword search FOX Model Year 26 , FOX MY26
Lockout Switch Remote
Maximum Tire Width 58
Negative Spring Air
Offset 44
Positive Spring Air
S.H.I.S. Stem Clamp Diameter 28.6
Stanchion Diameter 32
Steerer Tube Length (mm) 264
Steerer Type Tapered
Travel (mm) 100
Wheel Size 29"

FOX 32 Step-Cast Performance Suspension Fork Suspension Fork UPC: 821973504452
