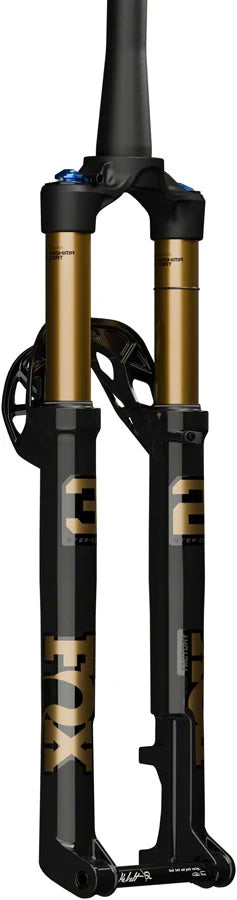

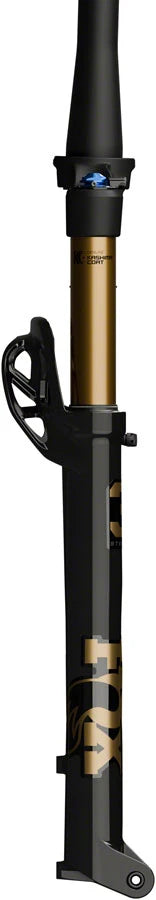

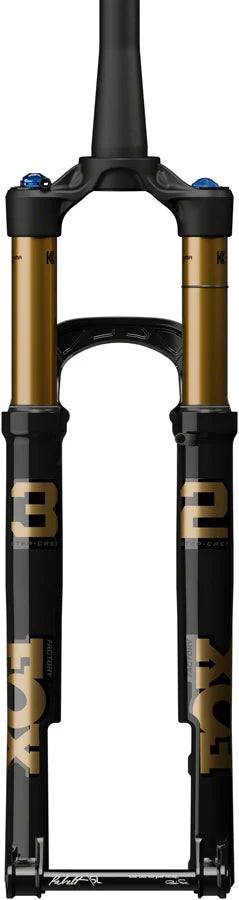

FOX 32 Step-Cast Factory Suspension Fork - 29", 100 mm, 15x110 mm, Kabolt SL, 44mm Offset, GRIP SL Damper, Psh-Lk., Ano

SKU: FK2788
(0)
$1,079.00
Out of stock
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

Need help choosing the right size?

Read our guide or get in touch

At under 1300g, the 32 Step-Cast is a superlight MTB fork and made for marathon racing. This fork features an incredibly light and short travel-specific GRIP SL Damper that not only saves weight, but provides an unparalleled ride feel in its class. With a sleek reverse arch, this fork also gains 40% stiffness over its predecessor
  • Remote for damper operation is sold separately

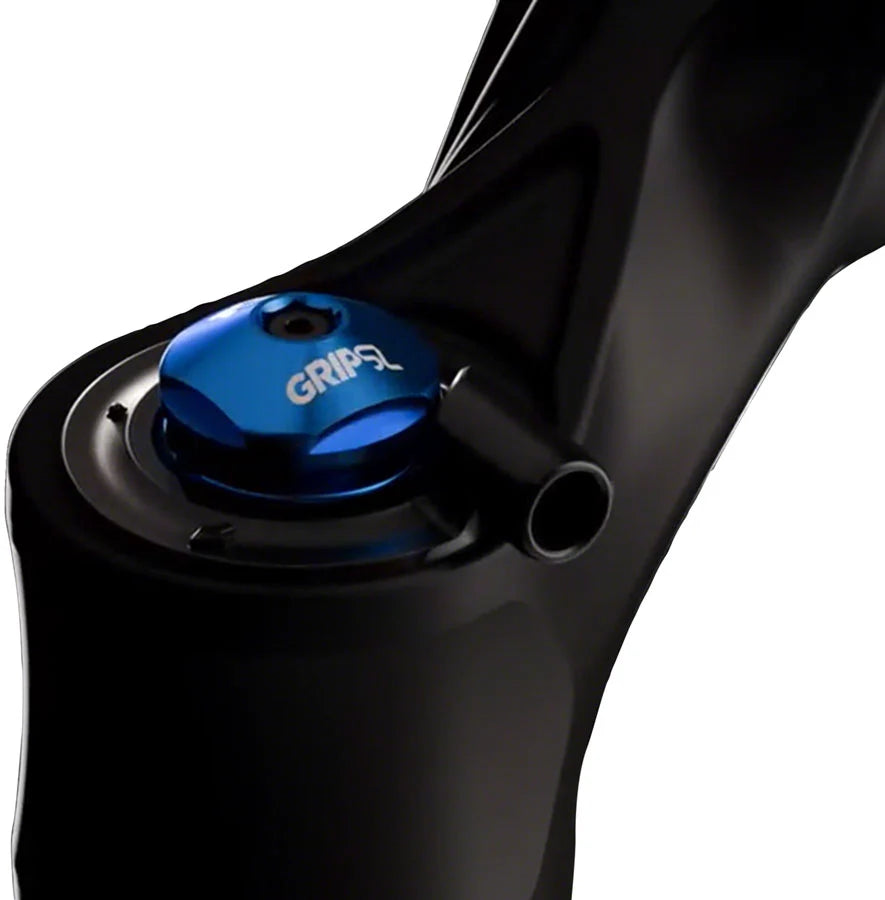

  • Features an incredibly light and short travel-specific GRIP SL Damper that not only saves weight, but provides an unparalleled ride feel in its class
  • Riders experience a supple stroke with an optimized pedal-to-bump efficiency, as well as a smooth blowoff force in lockout mode to reduce rider fatigue
  • The rear arch matrix was generatively designed to increase stiffness by 40% while minimizing the weight penalty
  • The premium 7000 Series aluminum, zero-offset crown supports angled upper tubes that not only contributes to the 32 Step-Cast's stiffness, but when combined with the ultra-light steerer tube, saves approximately 20g over the previous model
  • Fitted with the proven and reliable FLOAT EVOL air spring
  • Kabolt SL thru-axle drops an additional 12g over the standard Kabolt axle by eliminating the additional weight of the axle nut and decreasing the flange diameter
  • Kashima Coating on upper tubes for added durability
Item Specifications
Axle to Crown Length 503.7
Brake Type Post Mount 160
Color Shiny Black
Crown Race 40
Defined Color Black
External Adjustments High Speed Compression Damping
External Adjustments Low Speed Compression Damping
External Adjustments Rebound Damping
Front Axle 15mm Thru x 110mm
keyword search FOX Model Year 26 , FOX MY26
Lockout Switch Remote
Maximum Tire Width 58
Negative Spring Air
Offset 44
Positive Spring Air
S.H.I.S. Stem Clamp Diameter 28.6
Stanchion Diameter 32
Steerer Tube Length (mm) 264
Steerer Type Tapered
Travel (mm) 100
Wheel Size 29"

FOX 32 Step-Cast Factory GRIP SL Suspension Fork Suspension Fork UPC: 821973504445
